The following contains details of PANASIA’s eco-friendly energy systems designed to protect the air and water environments.

GloEn-Patrol™ is a combined treatment system taking advantage of Filtration and UV irradiation, the most environmentally friendly and optimally designed solution for every kind of vessel to install and operate.
Adopting a 100% physical treatment technology, GloEn-Patrol™ effectively disinfects harmful aquatic organism and pathogen in ballast water without producing any toxic substance during ballasting and de-ballasting. In addition, this uniquely engineered and designed filter and UV lamp are manufactured using PANASIA's own technologies to provide the utmost quality, reasonable price and timely delivery to the customers.

Products
GloEn-P1500
FEATURES

Excellent sterilization performance (100% physical treatment)

Automatic control of power consumption at 3 levels, depending on water quality

Low maintenance and repair cost

Operating system designed to increase user-friendliness

Automatic back flushing (filter), auto cleaning (UV lamp protection)

Capable of treating water, regardless of salinity or temperature

No use of chemicals that can cause corrosion in the tank

Optimized for the environment of the installation place (vertical or horizontal arrangement, unlimited installation gap between products)

Product line-up

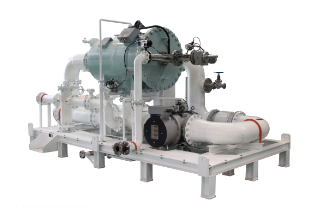

  • GloEn-Patrol™ G Ⅰ

    Combination : Original Filter Unit / Original UV Unit

    Treatment Capacity : 50 ~ 750m³/hr

    Features : Small capacity with single unit

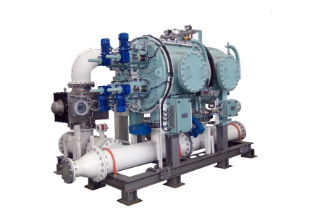

  • GloEn-Patrol™ G Ⅱ

    Combination : MEGA Filter Unit / Original UV Unit

    Treatment Capacity : 800 ~ 3,000m³/hr

    Features : Small footprint & Power consumption

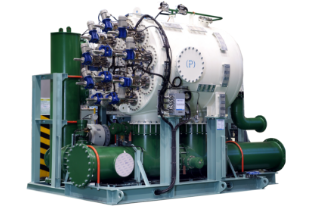

  • GloEn-Patrol™ G Ⅲ

    Combination : MEGA Filter Unit / MEGA UV Unit

    Treatment Capacity : 800 ~ 3,000m³/hr

    Features : High efficiency in power consumption and footprint

Certificates
  • New G8 IMO

    Approved Aug. 2019

  • USCG Type

    Approved Dec. 2018

  • IECEx Type

    Approved Sep. 2014

  • DNV Type

    Approved Sep. 2014

  • CCS Type

    Approved Mar. 2014

  • JG Type

    Approved Mar. 2014

  • BV Type

    Approved May. 2013

  • USCG Type

    Approved Apr. 2013

  • ABS Type

    Approved Mar. 2013

  • LR Type

    Approved Aug. 2012

  • RINA Type

    Approved Aug. 2012

  • CR Type

    Approved Sep. 2011

  • RMRS Type

    Approved Sep. 2011

  • Netherlands Flag

    Approved Aug. 2010

  • EX-PROOF Type DNV ATEX

    Approved Jun. 2010

  • G8 IMO

    Approved Mar. 2010

  • G9 IMO

    Approved Mar. 2010

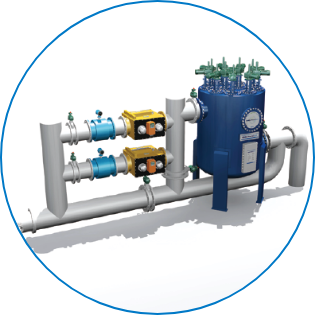

Comparing GI with GIII

Treatment capacity
3,000m³/hr

Improved In space & Power Consumption

Treatment capacity
3,000m³/hr

High Effciency_40% of power consumption is reduced.

Model Treatment
Capacity		 Power Consumption Reduced
By
GloEn-Patrol™ Ⅰ GloEn-Patrol™ Ⅲ
Min. Max.
P1000 1,000m³/hr 120kW 56kW 77kW 36%
P1200 1,200m³/hr 160kW 65kW 90kW 44%
P1500 1,500m³/hr 174kW 80kW 110kW 37%
P2000 2,000m³/hr 240kW 113kW 155kW 35%
P2500 2,500m³/hr 320kW 131kW 180kW 44%
P3000 3,000m³/hr 360kW 164kW 225kW 38%

Minimized Footprint_ 44.5% of installation area is reduced.

  • GloEn-Patrol™Ⅰ GⅠ

    2.39m X 7.4m = 17.7 m²

  • GloEn-Patrol™Ⅰ GⅢ

    2.19m X 1.9m + 0.97(1.17+4.67) = 9.83 m²

Power Consumption 40%
Minimized Footprint 44.5%
COMPONENT line-up

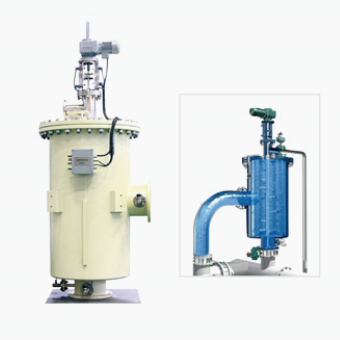

  • Original Filter Unit

    Type : Single screen type

    Capacity : 50 ~ 750m³/hr

    Max. Operating Pressure : 10 bar

    Grade of filtration : 50μm

    Filter Element Material : SUS 316L / Hastelloy

    Backflushing control : Differential Pressure-dependent

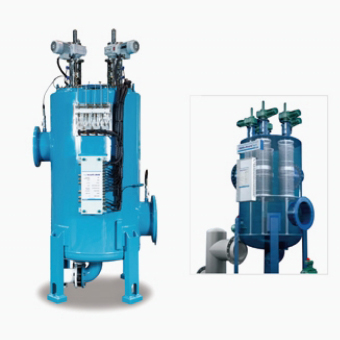

  • MEGA Filter Unit

    Type : Multi cage screen type

    Capacity : 900 ~ 3,000m³/hr

    Max. Operating Pressure : 10 bar

    Grade of filtration : 50μm

    Filter Element Material : SUS 316L / Hastelloy

    Backflushing control : Differential Pressure-dependent

MW Model Treatment Capacity
Original Filter Unit PF 50 50m³/h
PF 250 250m³/h
PF 500 500m³/h
PF 750 750m³/h
MEGA Filter Unit PF 900 900m³/h
PF 1200 1,200m³/h
PF 1500 1,500m³/h
PF 2000 2,000m³/h
PF 2500 2,500m³/h
PF 3000 3,000m³/h
COMPONENT line-up
  • Original UV Unit

    Capacity : 50 ~ 750m³/hr

    Max. Operating Pressure : 10 bar

    Automatic cleaning wiper

    Explosion Proof Type (option)

  • MEGA UV Unit

    Capacity : 1,000 ~ 1,500m³/hr

    Max. Operating Pressure : 10 bar

    Automatic cleaning wiper

    Explosion Proof Type (option)

Model Treatment Capacity
Original UV Unit PU 50 50m³/h
PU 250 150m³/h
250m³/h
350m³/h
PU 500 500m³/h
700m³/h
MEGA UV Unit PU 1000 1,000m³/h
PU 1250 1,250m³/h
PU 1500 1,500m³/h
Training Center
No. Country Location Company Contact E-mail
T/C-01 U.S.A TEMPA C&C PANASIA Inc. Mr.Ernie Chang echang@ccpanox.com
T/C-02 GREECE ATHENS BPCO LTD Mr.Arsenios
Papatheodorou		 info@bpco-group.com
T/C-03 KOREA BUSAN PANASIA H/Q Mr. Justin Bae marketing@worldpanasia.com
T/C-04 ESTONIA TALLINN BLRT Gropp Mr.Viktor Vassiljev vv@blrt.ee
