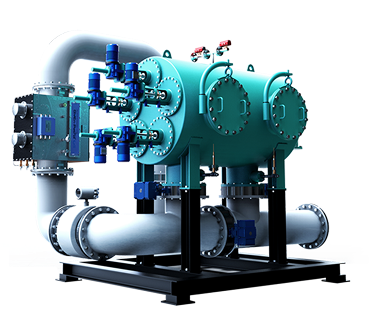

시스템 구성도 (GloEn-P1500)

- FLOW DIAGRAM (GloEn-P1500)

- PRODUCT LINE UP

	GloEn-Patrol™ G Ⅰ	GloEn-Patrol™ G Ⅱ	GloEn-Patrol™ G Ⅲ
Combination	Original Filter Unit Original UV Unit	Mega Filter Unit Original UV Unit	Original Filter Unit Original UV Unit
Treatment Capacity	50~750m³/hr	800~3,000m³/hr	50~750m³/hr
Features	Small capacity with single unit	Smaller footprint & Power consumption	Small capacity with single unit

- 인증서

Filter Unit

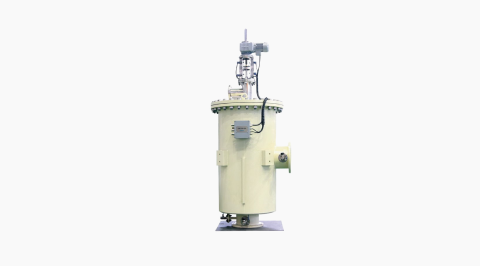

Original Filter Unit
Type : Single screen type

Capacity : 50 ~ 750m³/hr

Max. Operating Pressure : 10 bar

Grade of filtration : 50μm

Filter Element Material : SUS 316L / Hastelloy

Backflushing control : Differential Pressure-dependent

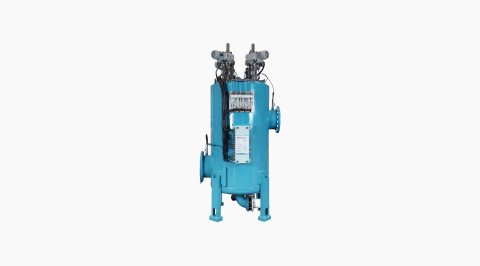

MEGA Filter Unit
Type : Multi cage screen type

Capacity : 900 ~ 3,000m³/hr

Max. Operating Pressure : 10 bar

Grade of filtration : 50μm

Filter Element Material : SUS 316L / Hastelloy

Backflushing control : Differential Pressure-dependent

컴포넌트 라인업

Original UV Unit
Capacity : 50 ~ 750m³/hr

Max. Operating Pressure : 10 bar

Automatic cleaning wiper

Explosion Proof Type (option)
MEGA UV Unit
Capacity : 1,000 ~ 1,500m³/hr

Max. Operating Pressure : 10 bar

Automatic cleaning wiper

Explosion Proof Type (option)

Panel

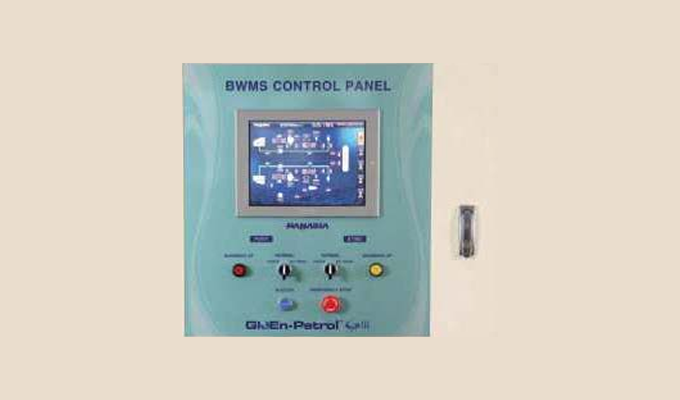

- Control Panel
- -SmartHMI system
- -Datalogging for 24 months
- -Main data real time display
  (Position,Pressure, Flow, Temperature, etc)
- -Alarm function (Interface with AMS or Load master)

  Controller:Siemens PLC

  Touch screen

  OperationTemperature: 0 ~ 55°C

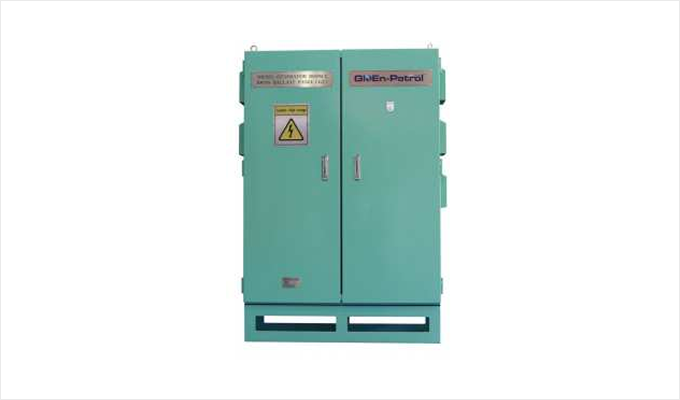

- UV Power Supply Panel
- - OperationTemperature: 0 ~ 55°C
- - Prevent high heat dissipation
