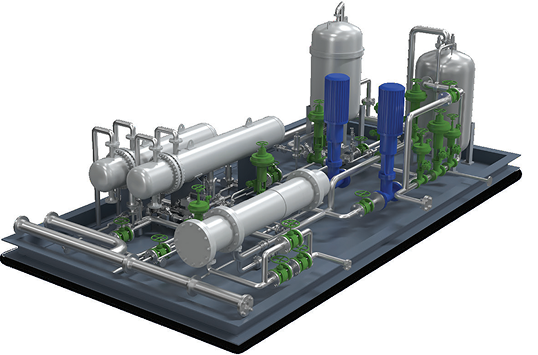

Vaporizer & Buffer Tank Module
We’re Panasia
FGSS
- 친환경솔루션
- Fuel Supply System
- FGSS
카탈로그
바로가기
LNG Fuel Gas Supply System
Fuel Gas Supply System
제품설명
파나시아의 LNG Fuel Gas Supply System은 LNG(Liquified
Natural Gas)를 선박의 연료로 사용하는 것을 말합니다.
엔진 모델에 따라 HP(고압) & LP(저압) Type으로 구분합니다.
1. HP/LP Type
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent

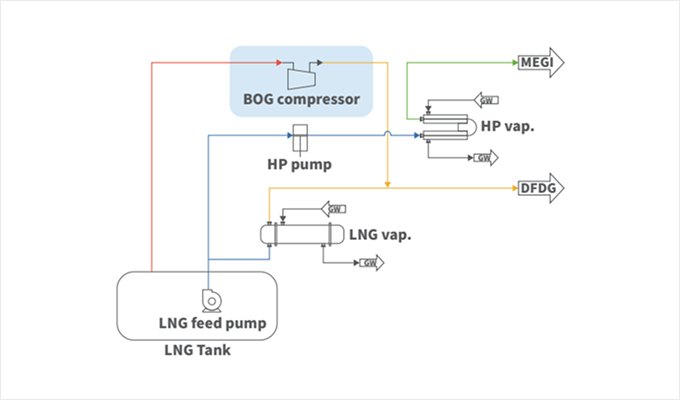

- PFD - HP/LP WITH BOG COMP.

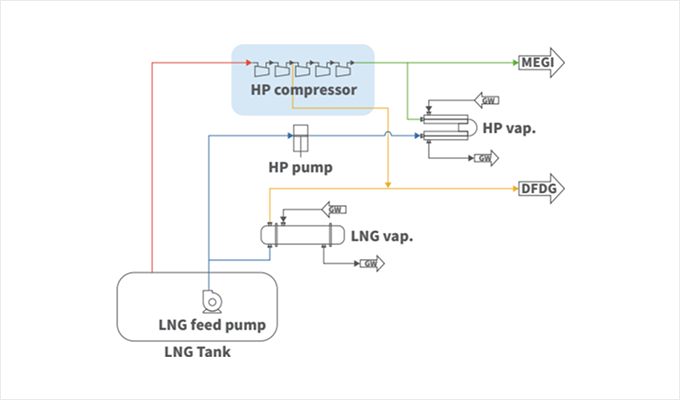

- PFD - HP/LP WITH HP COMP.
2.LP TYPE
- Design Data
· LNG Feed Pump
Dis. Press 18 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
· LP BOG Comp.
Injected Screw Type (16 bar) X 1 set

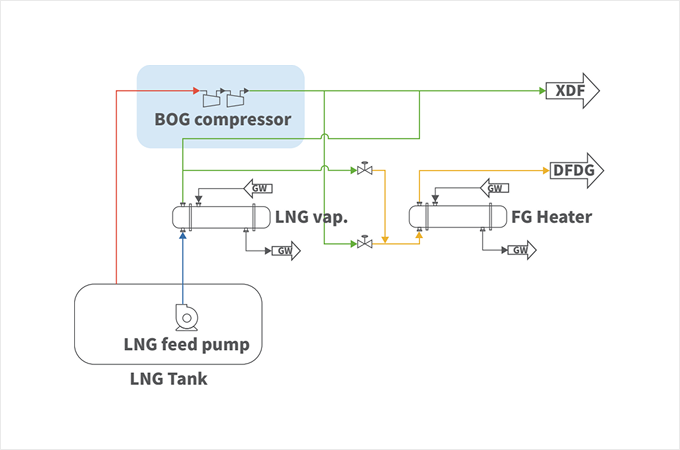

- PFD – LP with BOG Compressor
Reference

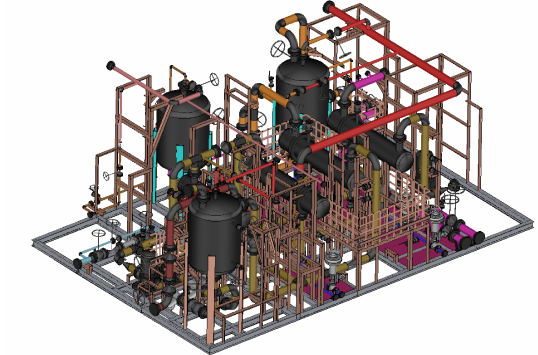

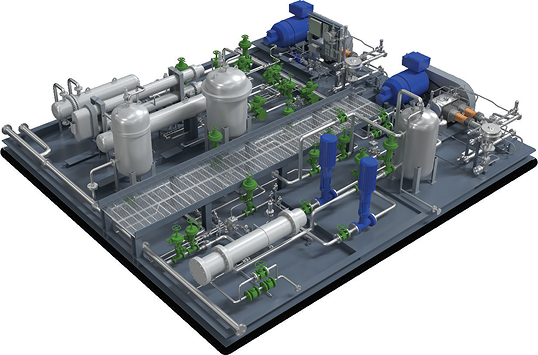

- Aframax Tanker SKID Module
One skid Module
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
Glycol Water Module
Bunker Station
Acquiring AIP cert. from ABS

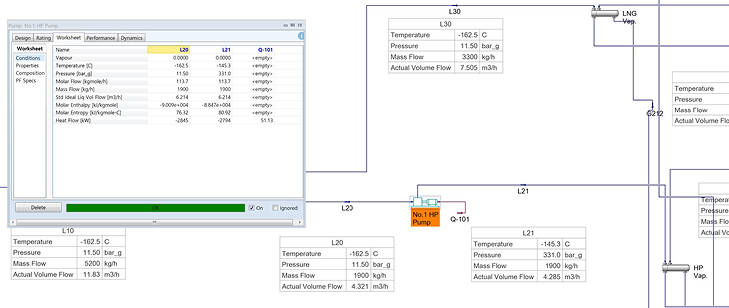

FGSS-Heat & Material Balance

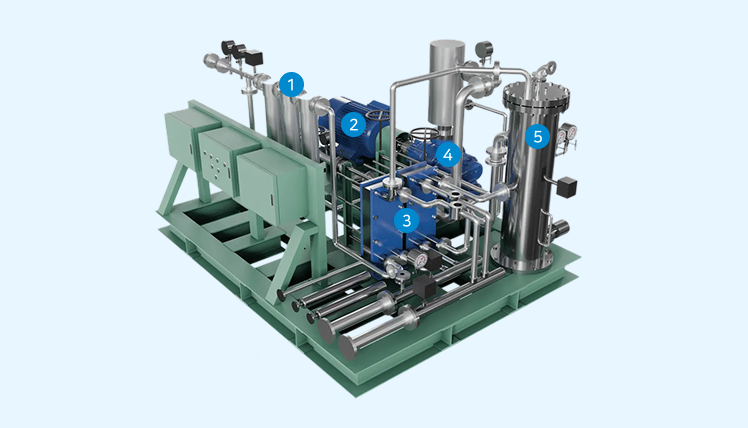

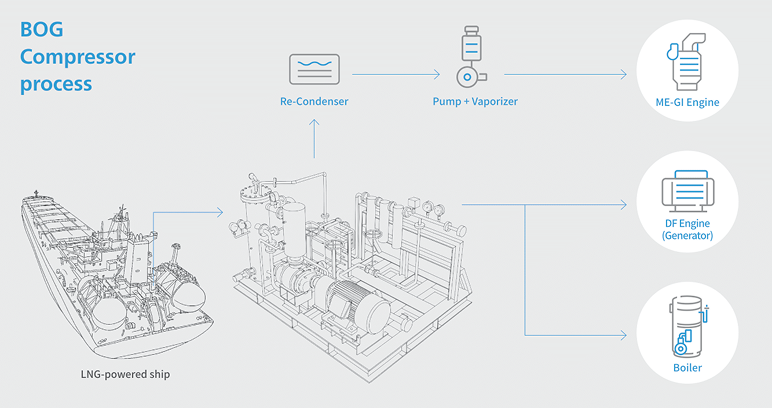

BOG Compressor
BOG(Boil-Off Gas)는 탱크에 저장된 LNG(Liquefied Natural Gas)가
자연적으로 기화되어 발생하는 증기입니다.
BOG 압축기는 이 증기를 안전하게 처리하여 선박의 안전을 확보하고,
동시에 연료로 효율적으로 활용할 수 있도록 하는 핵심 장비입니다.
-
Gas Filter
-
Main Motor
-
Coolers
-
Gas End (Oil injected type)
-
Oil Separator
- Specification
| Type | Oil injected screw type |
|---|---|
| Fluid | CH₄, N₂, CO₂, etc. |
| Capacity | Max. 5500Nm³/hr |
| Suction Pressure | In accordance with customer requirements |
| Suction Temperature | -50 ~ +50℃ |
| Discharge Pressure | Max. 60 barg |
| Discharge Temperature | Max. 100℃ |
- Line-up
| Category | Unit | PC13 | PC14 | PC21 | PC22 | PC30 |
|---|---|---|---|---|---|---|
| Power range | kW | 30 ~ 75 | 37 ~ 110 | 75 ~ 200 | 90 ~ 250 | 132 ~ 400 |
| hp | 40 ~ 100 | 50 ~ 150 | 100 ~ 270 | 120 ~ 330 | 180 ~ 550 | |
| Inlet flow range | m³/min | 3 ~ 8 | 4 ~ 13 | 7 ~ 20 | 9 ~ 22 | 17 ~ 50 |
| cfm | 105 ~ 280 | 140 ~ 460 | 250 ~ 700 | 315 ~ 775 | 600 ~ 1760 | |
| Male rotor speed range | rpm | 1500 ~ 6600 | 1300 ~ 6500 | 1000 ~ 5000 | 900 ~ 3900 | 700 ~ 3400 |
| Max allowable working pressure |
barg | 20 | 20 | 20 | 20 | 20 |
| psig | 290 | 290 | 290 | 290 | 290 |
