LNG Fuel Gas Supply System
Fuel Gas Supply System
제품설명
파나시아의 LNG Fuel Gas Supply System은 LNG(Liquified
Natural Gas)를 선박의 연료로 사용하는 것을 말합니다.
엔진 모델에 따라 HP(고압) & LP(저압) Type으로 구분합니다.
1. HP/LP Type
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
- PFD - HP/LP WITH BOG COMP.
- PFD - HP/LP WITH HP COMP.
2.LP TYPE
- Design Data
· LNG Feed Pump
Dis. Press 18 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
· LP BOG Comp.
Injected Screw Type (16 bar) X 1 set
- PFD – LP with BOG Compressor
Reference
- Aframax Tanker SKID Module
One skid Module
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
Glycol Water Module
Bunker Station
Acquiring AIP cert. from ABS
FGSS-Heat & Material Balance

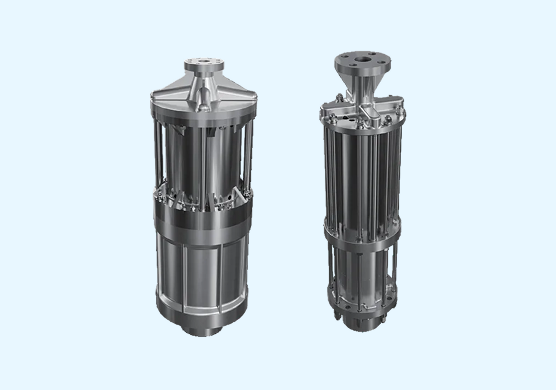

- LP Pump
- Application
Use where product loss is not acceptable
·Fuel gas supply system
·Liquid storage transfer
- Linp-up
| Model | Max. Flow Rate [m³/hr] | Max. Operating Pressure [barg] |
|---|---|---|
| PEL-L20N | 24 | 20 |
| PEL-L30N | 36 |
- Specification
| Type | Unit | Centrifugal multi-stage submerged |
|---|---|---|
| Capacity | m³/h | 1 ~ 36 |
| Total head | mlc | 15 ~ 450 |
| Liquid temperature | ℃ | -163 |
| Discharge bore | mm | - |
| Power (motor) | kW | 5 ~ 95 |
| NPSHr | m | 0.15 ~ 1.5 |
| Differential pressure | bar | 20 |
| Design pressure | barg | 30 |
| Speed range | rpm | 1,200 ~ 7,200 |
