PANASIA SOx Scrubber Increasing ‘MRO’ Service Inquiries
Date
2023-02-20
Hit
1692
File

PANASIA SOx Scrubber Increasing ‘MRO’ Service Inquiries



The International Maritime Organization (IMO) has decided to comply with the sulfur content of ship fuel below 0.5% from January 1, 2020, which has led many shipowners to install Scrubber as a solution.

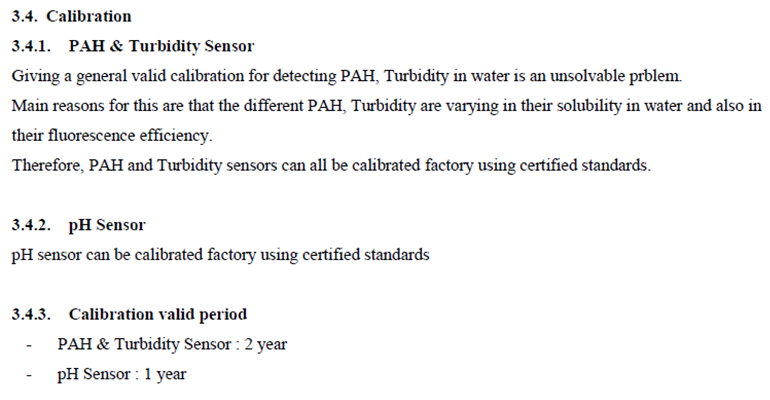

3 years after the Scrubber installation, the time for Scrubber sensor calibration is approaching.

The PAH and Turbidity Sensors installed in Scrubber's Water Monitoring System (WMS) must be calibrated to the correct values of both sensors to measure Scrubber Wash-water, as described in the MEPC Rule and the Onboard Monitoring Manual (OMM), a senior approval document.



MEPC.259(68) & MEPC.340(77) / 10.2.2 of Annex 1

 “The permissible deviations of the discharge water monitoring equipment should not exceed the following”

PH – 0.2 pH units

PAH – 5% of nominal standard test concentration used. That nominal concentration value should be not less than 80% of the scale range used

Turbidity – 2 FNU or NTU

Calibration intervals should be such that the above performance requirements are met.

Calibration and calibration checks should be done according to manufacture’s specification.





If you do not perform PAH, Turbidity sensor calibration, you will receive some Penalty. For example, when the Port State Control (PSC) comes up to the ship and checks the OMM, a comment will occur if there is no Sensor calibrated cert.









The topic of the future is eco-friendly.

Calibration is very important when using eco-friendly products.

However, due to frequent crew changes, many of the ship's equipment cannot be inspected and identified on time, and the calibration period is often missed.






The Panasia ‘MRO’ service will not only inform you of the calibration period in Maker, but it will also be of great help in pre-inspection and maintenance of equipment.  And most of all, it will ease the work of the crew.



Through calibration, we perform inspections to prevent any problems that can occur, and maximize efficiency in system operation.

This service eliminates the need for you to monitor complicated sensors with many critical points attached to them. It also allows you to promptly schedule maintenance or repairs.

With PANASIA’s ‘MRO’ service, our professionals visit your ships to perform checkups and proactively diagnose any potential issues in need of further inspection.

Also, following each visit, we prepare a report that contains any information and solutions you may need to ensure efficiency in your operations.

Our ‘MRO’ service saves you both management costs and time.



Calibration & Replacement, On-board condition survey, Training & education course, PaSOx Learning software, Marine Satellite control system






Panasia, which has been selling Scrubber since 2019, has achieved 508 Scrubber performances so far as of 2023. As a result, more customers are inquiring about Scrubber ‘MRO’ Service than usual. So far, ‘MRO’ Service has achieved a total of 33 ships.



Panasia’s Sox Scrubber “PaSOx” Reference : 508 ships

Clarksons Research 2023.01 : Global Market Share = 7% , 3rd Place

Panasia’s Sox Scrubber “MRO” Reference : 33 ships

Panasia’s Service : Marine Satellite Control System , CBT/IBT E-learning program , Training Center , Test Barge ship / 3 overseas Branches And 47 Global Service Network(37 Countries)                              www.worldpanasia.com
