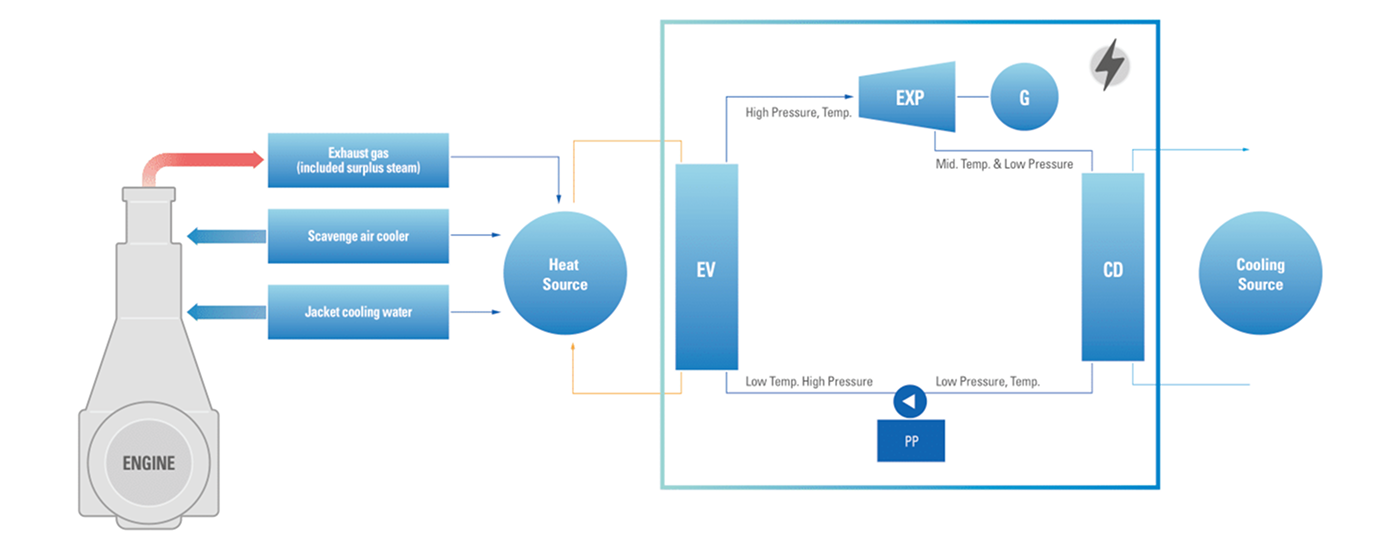

System Diagram

Technical Specification

Heat source temperature	75 - 150 °C
Working fluid	ODP(Ozone Depleting Potential) : 0
	GWP(Greenhouse Warming Potential) : 1
	ASHRAE Classification : A1 (Non-toxic, non-flammable)
Expander	Radial inflow turbine
Generator	Permanent magnet synchronous generator
Heat Exchanger	Brazed or Gasketed plate construction
Control	Custom programmable logic controller
Site condition for installation	Non-hazardous, indoor
Emission profile	Zero (Closed binary cycle)
Voltage	380 - 480VAC
Frequency	60 or 50Hz

Line-up

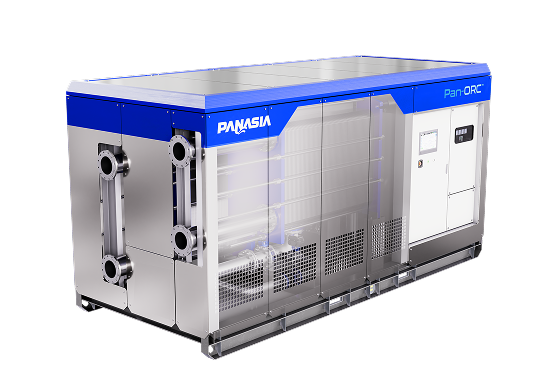

Model	Pan-ORC1	Pan-ORC2	Pan-ORC3	Pan-ORC4
Gross Power	~ 100 kW	~ 200 kW	~ 300 kW	~ 600 kW
Heat source	1,301 ~ 2,235 kW	2,603 ~ 4,470 kW	3,904 ~ 6,705 kW	7,809 ~ 13,411 kW
Cooling source	1,210 ~ 2,134 kW	2,420 ~ 4,268 kW	3,630 ~ 6,401 kW	7,261 ~ 12,803 kW
Dimension (LxWxH)	4 x 2 x 2.5 m	4.5 x 2 x 2.8 m	5.5 x 2.5 x 3 m	7 x 3.6 x 3.7 m
Weight	5 tons	8 tons	16 tons	23 tons

Key Benefits

Low Maintenance

Oil-free, wear-free expander with minimal service needs
Expander & Generator

Patented expander with high efficiency, no oil, no wear,
ensuring durability
Fuel & CO₂ Savings

Lower fuel consumption, compliance with EEXI/EEDI/CII,
and CO₂ tax reduction
Smart Monitoring

Remote access and real-time data logging (optional)
Certified & Reliable

Marine classification approvals, safe and robust design
Control System

Autonomous PLC with HMI, Modbus TCP integration,
1-second data logging

MoU for Onboard Demonstration of Organic Rankine Cycle (ORC) Waste Heat Recovery Power Generation System (2025.11.18)

Verification of the effectiveness of the ORC
waste heat recovery power generation system
Assessment of technical and economic feasibility
Acquisition of operational data from
demonstration voyages
Expected annual reduction of
230 tons of fuel consumption
and 700 tons of CO₂ emissions
