Ammonia Fuel Supply System
Product Overview
PANASIA’s Ammonia Fuel Gas Supply System is designed for ships
operating on liquefied ammonia fuel. Sharing a common architecture
with LNG, LPG, and methanol supply systems, it ensures the safe
delivery of liquefied fuels to the engine and helps ships achieve
zerocarbon operation.
Reference
- Design Data
· LP Pump
Dis. Press. 18 bar Multi-stage centr. Pump X 1 set
· HP Pump
Dis. Press. 88 bar Metering Pump X 1 set
· BOG Compressor
Dis. Press. 18 bar Oil Injection Screw Water Cooled X 1 set
· Vaporizer
Temp: -24℃ → -18.7℃
· Water seal
Temp: -24℃ → 60℃
· NH₃ Supply Skid
- IMO Type-C Single Shell Tank. (abt. 5m³)
- Material 9% Nickel Steel or Equivalent
- LP, HP Pump
· Heat Exchanger
Shell&Tube or Equivalent
· NH₃ Liquefaction Skid
BOG Compressor & Separator
· NH₃ Dilution Skid,
NH₃ Catch Skid
NH₃ Catch Skid
IMO Type-C Single Shell Tank. (abt. 5m³)
· Aqueous NH₃ Pump
Dis. Press 7 bar Diaphragm pump X 1 set
NH₃ Liquefaction Skid
NH₃ Dilution Skid
NH₃ Catch Skid

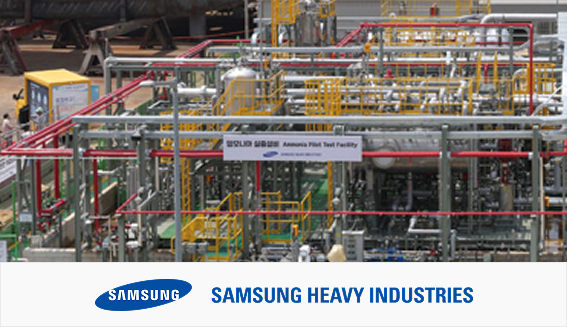

PANASIA X Samsung Heavy Industries completed
Ammonia Fuel Supply System Demonstration Facility
-
-
-
- Proven Track Record
-
- DNV AIP Achievement
-
