Emission
- Eco-friendly Solution
- Emission
- SCR
Go to
Catalog
De-NOx SCR System
Product Overview
The PaNOx™ system applies Selective Catalytic Reduction (SCR)
technology to decompose and reduce nitrogen oxides (NOx)
in exhaust gases into harmless water (H₂O) and nitrogen (N₂),
delivering a clean and eco-friendly solution.
PaNOx Marine™ is an SCR solution developed specifically for marine applications to
comply with International Maritime Organization (IMO) Tier III regulations.
It effectively reduces nitrogen oxides (NOx) generated during vessel operation, helping
ships meet global environmental requirements.
PANASIA’s PaNOx™ has established itself as an optimal solution for responding to
increasingly stringent environmental regulations in the global shipping industry.
Selective Catalytic Reduction (SCR) Mechanism
Certificates
- EIAPP (Applicant : PANASIA)
- Type Approval
LR
BV
DNV
ABS
KR
ABS
KR
- EIAPP (Applicant : PANASIA)
LR
BV
DNV
ABS
KR
- Type Approval
ABS
KR
De-NOx system for marine
As one of the top tier companies in SCR market, Panasia has been supplying De-
NOx SCR systems to global shipbuilders and ship owners. Based on the proven high
technology, we have been consistently trying to optimize and develop our system
more efciently. Our SCR system complies IMO Tier III emission limits.
NOx SCR systems to global shipbuilders and ship owners. Based on the proven high
technology, we have been consistently trying to optimize and develop our system
more efciently. Our SCR system complies IMO Tier III emission limits.

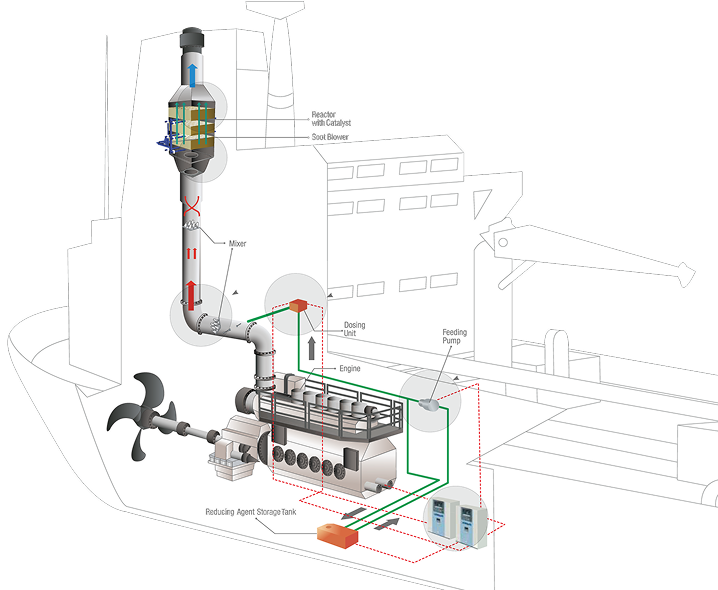

System Configuration Diagram

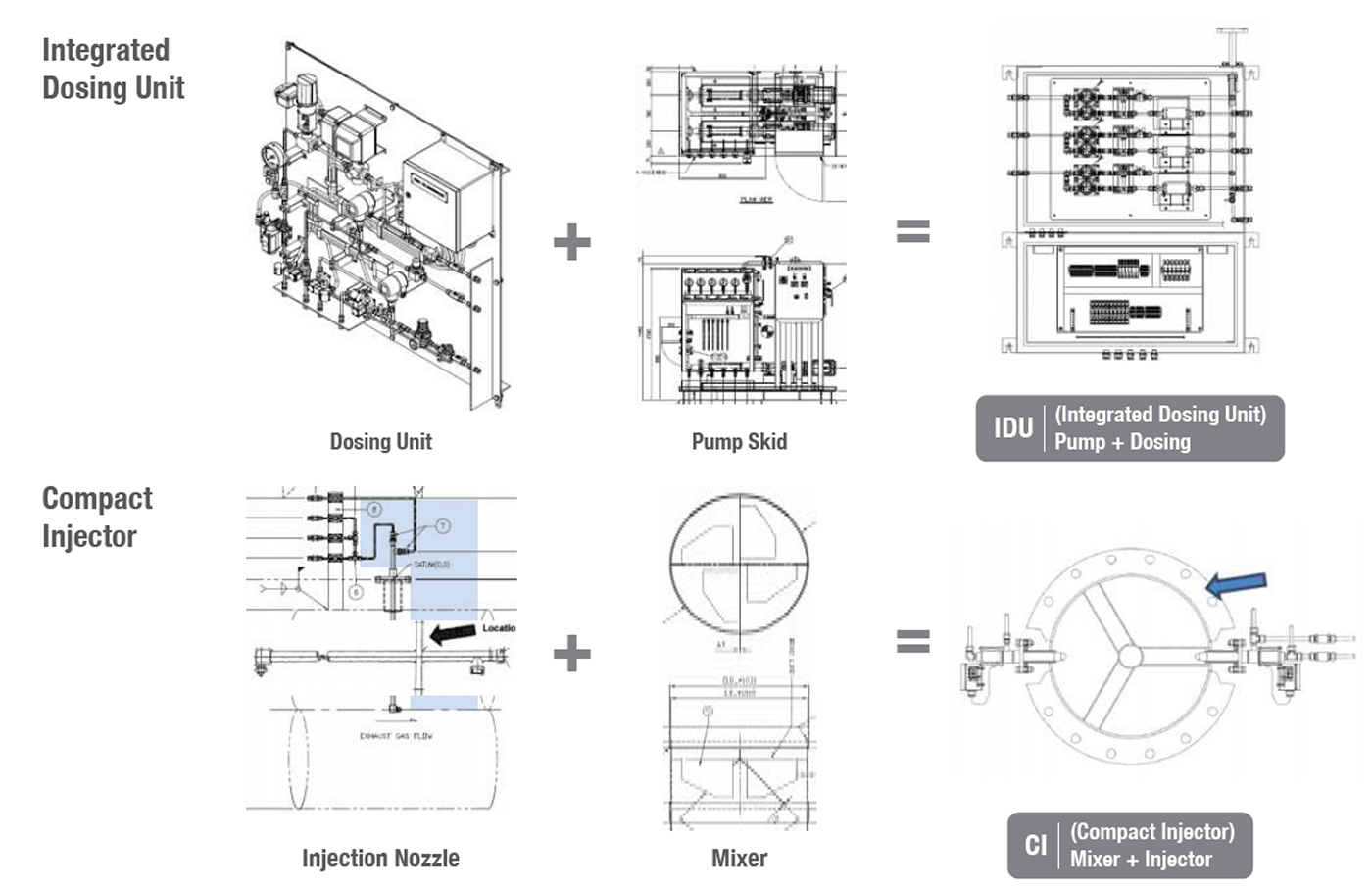

Main Components
Control Panel
IDU(Intergrated Dosing Unit)
= Pump Skid + Dosing Unit
CI(Compact Injector)
= Mixer + Injector
- COMPARISON BETWEEN ORIGINAL MODEL AND SMART VERSION 2 MODEL
6 pcs
PaNOx Marine
- · SCR Reactor
- · Control Panel
- · Dosing Unit
- · Pump Skid- Injection Nozzle
- · Mixer
4 pcs
PaNOx Marine
- · SCR Reactor
- · Control Panel
- · IDU(Intergrated Dosing Unit)
- · CI(Compact Injector)
- SCR Reactor
| Capacity | PaNOx smart V1.0 | PaNOx smart V2.0 | Reduced by | ||||
|---|---|---|---|---|---|---|---|
| Length | Height | Width | Length | Height | Width | ||
| 1000kw | 970 | 970 | 2750 | 953 | 947 | 2680 | 6.52% |
| 3000kw | 1293 | 1284 | 3240 | 1425 | 1181 | 3240 | 15.42% |
| 4000kw | 1613 | 1601 | 3240 | 1425 | 1415 | 3240 | 21.92% |
| 4500kw | 1923 | 1605 | 3362 | 1661 | 1649 | 3240 | 14.48% |
| 8000kw | - | - | - | 2133 | 2121 | 3240 | - |
- I.D.U
| Component | Length | Width | Height | Surface Area(m²) | ||
|---|---|---|---|---|---|---|
| PaNOx smart V1.0 | Pump Skid | 1630 | 900 | 1516 | 10.6 | 14.86 |
| Dosing Unit | 1200 | 320 | 1150 | 4.26 | ||
| PaNOx smart V2.0 | IDU | 1070 | 500 | 1360 | 5.34 | - |
| Reduced by | 64.06% | |||||
