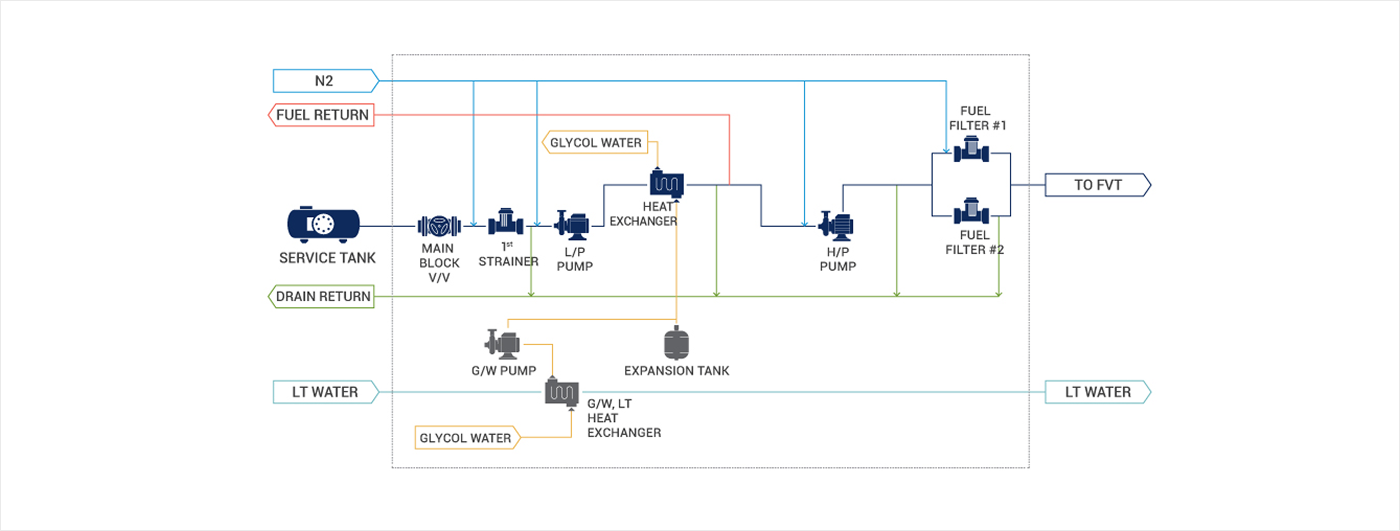

Methanol Fuel Supply System

Product Overview

The Methanol Fuel Gas Supply System is designed for ships
operating on methanol fuel. It safely stores and transfers
methanol in its liquid state to the engine, serving as a core
technology for the adoption of eco-friendly alternative fuels

Pressure to engine Temperature to engine Ambient Temperature MeOH Feed Temperature Inert Gas Used Heating Media Cooling/Heating Water ATEX Classification
13 ± 0.5 bar.g 25 ~ 50℃ -10℃ ~ +45℃ 0 ~ +45℃ Nitrogen Glycol Water (25wt.%) L.T.C.F.W (36℃) Zone 1
Engine power (Bore) Engine power (MW) Max. Fuel flow (kg/h) Model (by capacity)
50ME-Line ~12* 386 ~ 5,400 PanLFSS™-10
60ME-Line ~22* 559 ~ 10,140 PanLFSS™-20
80ME-Line ~42* 1,224 ~ 18,360 PanLFSS™-40
95ME-Line ~82* 1,764 ~ 35,500 PanLFSS™-80

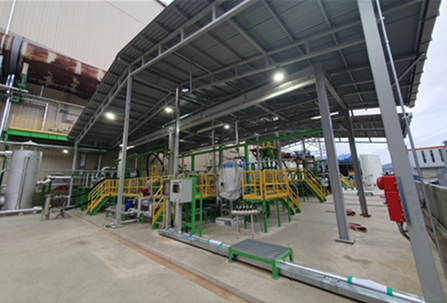

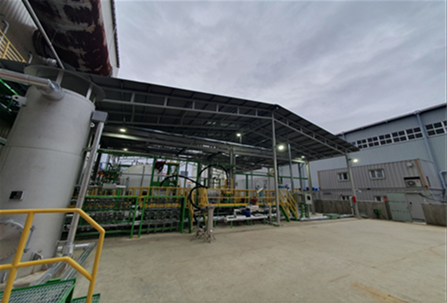

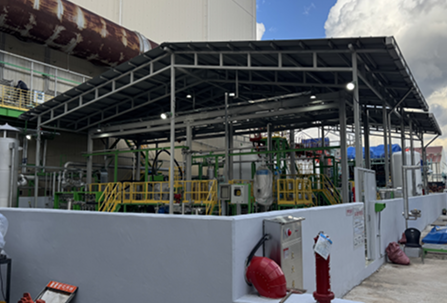

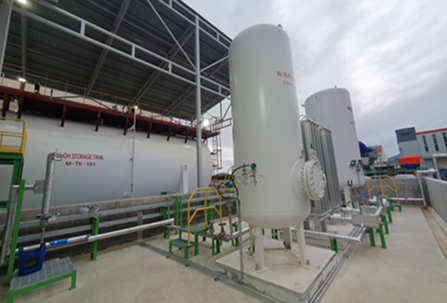

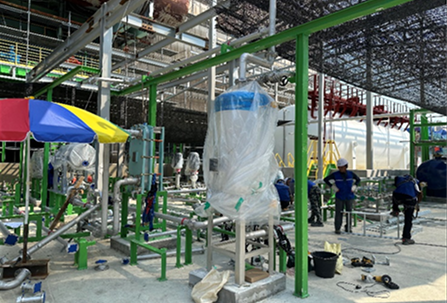

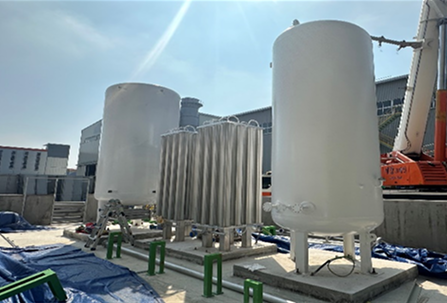

Reference

- Propulsion Engine Fuel Supply Application

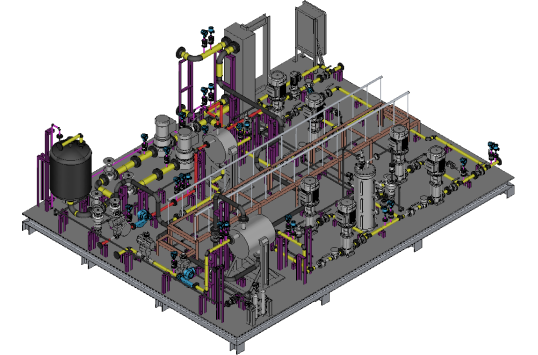

G/E+G.W LINE SKID

· Methanol Supply Pump
Dis. Press. 6 bar.g / Sealless VFD Control
· Methanol Fuel Pump
Dis. Press. 13 bar.g (Diff. Head 71 m) / Sealless VFD Control
· Fuel Heater
  • Temp : -18 deg.C -> 25 deg.C / Glycol water 25~40%wt.
  • Shell & Plate or Equivalent
· Fuel Filter
Duplex / 10 micron
· Fuel Strainer
Y Strainer / 100 micron
· Fuel Pipe Material
Austenite Stainless Steel (A213-TP316)

- Generator Engine Fuel Supply Application

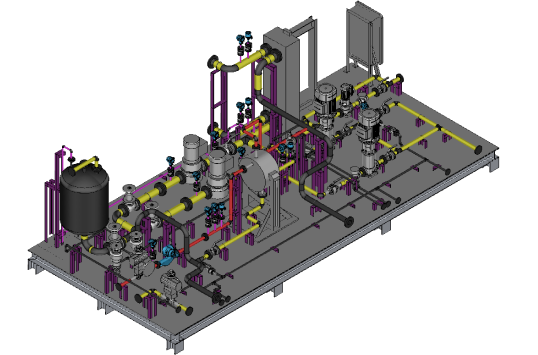

M/E LINE SKID

· Methanol Supply Pump
Dis. Press. 8 bar.g / Sealless VFD Control
· Fuel Heater Temp
  • -18 deg.C -> 25 deg.C / Glycol water 25~40%wt.
  • Shell & Plate or Equivalent
· Fuel Filter
Duplex / 10 micron
· Fuel Strainer
Y Strainer / 100 micron
· Fuel Pipe Material
Austenite Stainless Steel (A213-TP316)
· Main Frame Material
SS400 or eq.

- Common Utility System for MeOH LFSS

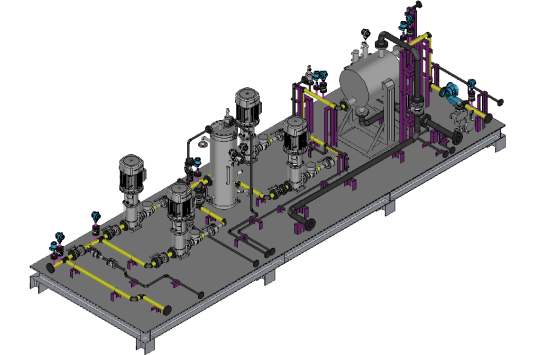

ONE SKID

· Glycol water system
  • Vertical Inline Centifugal x 2 set
  • Medium : Glycol water 25~40%wt. / LT water (36 deg.C)
  • Glycol water tank : abt. 0.5 m³
· N2 Purge & Drain
System
  • N2 Supply train with valve (Automatic Purge system as an option)
  • Pneumatic acting drain pump : 60LPM
  • Drainage level control buffer
· Safety
Leak Detection Sensor (LEL 25% H/C)
· Automation
Control Panel & HMIDuplex / 10 micron
