Continuous Emission
Monitoring System

Product Overview

The Continuous Emission Monitoring System (CEMS) measures and
records the concentration and volume of exhaust gases emitted
from ships or industrial sites in real time.

Applying Method D, the EU-recognized official emission calculation method, CEMS enables
accurate data-based emission management and regulatory compliance. It also contributes to
creating a stable and efficient operating environment for vessels.

Scope of Application Application Criteria
  • -Cargo ships, passenger ships, and offshore vessels of 5,000 GT and above
  • - Vessels calling at EU ports
  • - Gradual introduction of ETS from 2024
  • - Mandatory purchase of emission allowances based on total GHG emissions

Main Components

Shore Conn. Panel

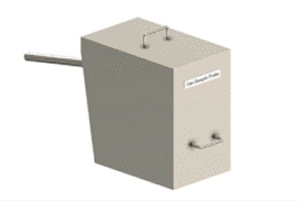

Sampling Probe

Amp Receiving Panel

Heated Sample Line

Socket Box

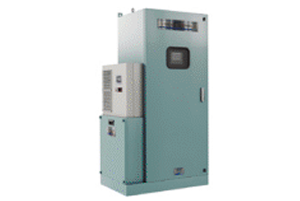

Gas Conditioning Panel

Transformer

Gas Analyzer Panel

Transformer

15.6” Monitor with Analysis Program

Transformer

Analysis Program

System Diagram

Key Benefits

  • Measured Gases

    Nitrogen Oxides (NOₓ, NO₂) Sulfur Dioxide (SO₂)
    Carbon Monoxide (CO) Carbon Dioxide (CO₂) Methane (CH₄)
    Nitrous Oxide (N₂O) Oxygen (O₂)

  • All-in-One System

    Integrates all gas monitoring functions required for vessel operations into a single system, enabling efficiency reporting.

  • Automated Regulatory Reporting

    Enhances management efficient by automatically generating reports in compliance with international formats such as IMO and EU MRV.

  • Real-Time Remote Monitoring

    Enables real-time remote monitoring via the Maritime Satellite Communication System (MSCS).

Technical Specifications

System Configuration Sampling Probe + Heated Sample Line +
Gas Conditioning Panel + Gas Analyzer Panel + HMI
Measuring Method NDIR: NOx(NO with NO₂ to NO Converter),
SO₂, CO, CO₂, CH₄, N₂O
Operating Temperature 0 ~ 55℃
Accuracy ±2% of Full Scale
Repeatability ±1% of Full Scale
Zero Drift ±2% of Full Scale
Span Drift ±2% of Full Scale
Response Time 1 ~ 15s
Max. Measuring Point 12 Stacks
Sampling/Measuring Time Within 3 mins
