LNG Fuel Gas Supply System
Product Overview
The LNG Fuel Gas Supply System (FGSS) provides ships with
liquefied natural gas (LNG) as fuel. Depending on the engine
model, it is classified into high-pressure (HP) and low-
pressure (LP) types.
1. HP/LP Type
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
- PFD - HP/LP WITH BOG COMP.
- PFD - HP/LP WITH HP COMP.
2.LP TYPE
- Design Data
· LNG Feed Pump
Dis. Press 18 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
· LP BOG Comp.
Injected Screw Type (16 bar) X 1 set
- PFD – LP with BOG Compressor
Reference
- Aframax Tanker SKID Module
One skid Module
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
Glycol Water Module
Bunker Station
Acquiring AIP cert. from ABS
FGSS-Heat & Material Balance
- HP Pump
Belt pulley type
Gear type

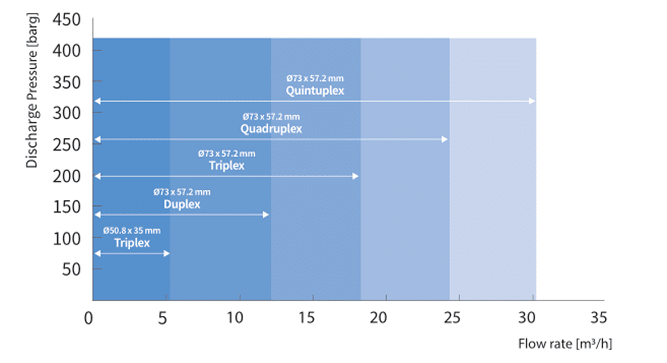

- Performance Curve
- Specification
| Type | Unit | Reciprocating |
|---|---|---|
| Capacity | m³/h | 1.5 ~ 30 |
| Design pressure (Suction) | barg | 10 |
| Design pressure (Discharge) | barg | 420 |
| Design density | kg/m³ | 450 |
| Liquid temperature | ℃ | -163 |
| Power (motor) | kW | 35 ~ 475 |
- Line-up
| Model | Max. Flow Rate [m³/hr] | Max. Operating Pressure [barg] |
|---|---|---|
| PEH-L05N | 5 | 325 or 380 |
| PEH-L10N | 10 | |
| PEH-L15N | 15 | |
| PEH-L20N | 20 | |
| PEH-L25N | 25 | |
| PEH-L30N | 30 |
