LNG Fuel Gas Supply System
Product Overview
The LNG Fuel Gas Supply System (FGSS) provides ships with
liquefied natural gas (LNG) as fuel. Depending on the engine
model, it is classified into high-pressure (HP) and low-
pressure (LP) types.
1. HP/LP Type
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
- PFD - HP/LP WITH BOG COMP.
- PFD - HP/LP WITH HP COMP.
2.LP TYPE
- Design Data
· LNG Feed Pump
Dis. Press 18 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
· LP BOG Comp.
Injected Screw Type (16 bar) X 1 set
- PFD – LP with BOG Compressor
Reference
- Aframax Tanker SKID Module
One skid Module
- Design Data
· HP Pump
Dis. Press. 300 bar reciprocating pump X 2 sets
· LNG Feed Pump
Dis. Press 12 bar submersible centrifugal type pump X 2 sets
· LP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· HP Vaporizer
Temp : -163℃ → 45℃ (Cold side)
· Glycol Skid
- Glycol Water (Water 50 : Glycol 50)
- Glycol Water Pump : Vertical Inline Centrifugal type X 2 sets
- Heat Exchanger : Shell&Tube or Equivalent
- Glycol Water Tank : abt. 0.5 m³
· LNG Storage Tank
- IMO Type-C Single Shell Tank
- IMO Type-C Double Shell Tank
- IMO Type-C Lattice Tank
- Material 9% Nickel Steel or Equivalent
Glycol Water Module
Bunker Station
Acquiring AIP cert. from ABS
FGSS-Heat & Material Balance

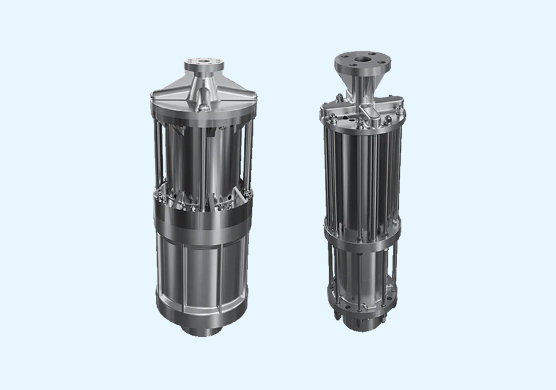

- LP Pump
- Application
Use where product loss is not acceptable
·Fuel gas supply system
·Liquid storage transfer
- Linp-up
| Model | Max. Flow Rate [m³/hr] | Max. Operating Pressure [barg] |
|---|---|---|
| PEL-L20N | 24 | 20 |
| PEL-L30N | 36 |
- Specification
| Type | Unit | Centrifugal multi-stage submerged |
|---|---|---|
| Capacity | m³/h | 1 ~ 36 |
| Total head | mlc | 15 ~ 450 |
| Liquid temperature | ℃ | -163 |
| Discharge bore | mm | - |
| Power (motor) | kW | 5 ~ 95 |
| NPSHr | m | 0.15 ~ 1.5 |
| Differential pressure | bar | 20 |
| Design pressure | barg | 30 |
| Speed range | rpm | 1,200 ~ 7,200 |
